    Plate and frame filter press-Waste water disposal plate a

    Plate and frame filter press Plate and frame filter press is the first machinery used in chemical dehydration. Although plate-and-frame filter presses are generally intermittent operation large investment in infrastructure equipment and lo


    Plate and frame filter press
    Plate and frame filter press is the first machinery used in chemical dehydration. Although plate-and-frame filter presses are generally intermittent operation, large investment in infrastructure equipment and low filtration capacity, they are still widely used in some small wastewater treatment plants because of their advantages such as high filtration impetus, high solid content of cake, clear filtrate, high solid recovery rate and low consumption of conditioning drugs.
    Waste water disposal plate and frame filter press for pharmaceutical factory

    General description
    After the sludge is concentrated and digested, the water content of sludge is still about 95%~97%, and the volume of sludge is still very large. Sludge dewatering can further remove void water and capillary water in sludge andits volume is reduced . After dewatering treatment, the water content of sludge can be reduced to 70%~80%, and its volume is 1/10~1/4 of the original volume, which is conducive to subsequent transportation and treatment.
    Mechanical dewatering of sludge includes filtration dewatering, centrifugal dewatering and press dewatering, and filtration dewatering includes vacuum filtration and pressure filtration. Centrifugal dewatering is carried out by centrifuge, and press dewatering is carried out by screw press or rolling press. Pressure dewatering  and centrifugal dehydration are commonly used.
    Waste water disposal plate and frame filter press for pharmaceutical factory
    Sludge filtration and dewatering is driven by the pressure difference between the two sides of the filter medium, which forces sludge water to form filtrate through the filter medium, while solid particles are intercepted on the medium to form filter cake, so as to achieve the purpose of sludge dewatering. Plate and frame filter press is the first machinery used in chemical dehydration.
    Although plate-and-frame filter presses are generally intermittent operation, large investment in infrastructure equipment and low filtration capacity, they are still widely used in some small wastewater treatment plants because of their advantages such as high filtration impetus, high solid content of cake, clear filtrate, high solid recovery rate and small consumption of conditioning drugs.

    Waste water disposal plate and frame filter press for pharmaceutical factoryWaste water disposal plate and frame filter press for pharmaceutical factory
    Product characteristics:
    Plate and frame filter press is a kind of equipment for separating solid and liquid in industrial production. It is used in chemical industry, ceramics, petroleum, medicine, food, smelting and other industries. It is also suitable for industrial filtered sewage treatment, and the hydraulic type is integrated with mechanical, electrical and hydraulic. The hydraulic equipment is used for pressing and the manual machinery is used for locking and holding pressure. The operation and maintenance is easy , safe and reliable.
    Waste water disposal plate and frame filter press for pharmaceutical factory
    The working principle of plate and frame filter press: used for separating solid and liquid. The mud cake filtered by filter press has higher solid content and better separation effect. The basic principle of solid-liquid separation is that the mixed liquid flow passes through the filter medium (filter cloth), the solid stays on the filter cloth, and gradually accumulates on the filter cloth to form the filter cake. The filtrate part permeates the filter cloth and becomes a clear liquid without solid.

    Product uses:
    Coal washing, inorganic salt, mining, alcohol, petroleum, chemical industry, fuel, metallurgy, medicine, food, textile, printing and dyeing, paper making, municipal sewage treatment and other fields.

    Product advantages:

    The material of the filter plate is alkali-free glass fiber polypropylene, which make the filter plate  has elasticity of rubber filter plate and also has the toughness and rigidity of reinforced polypropylene filter plate. The thickness error is 0.02 which is processed by special processing center. The flatness is 0.015.

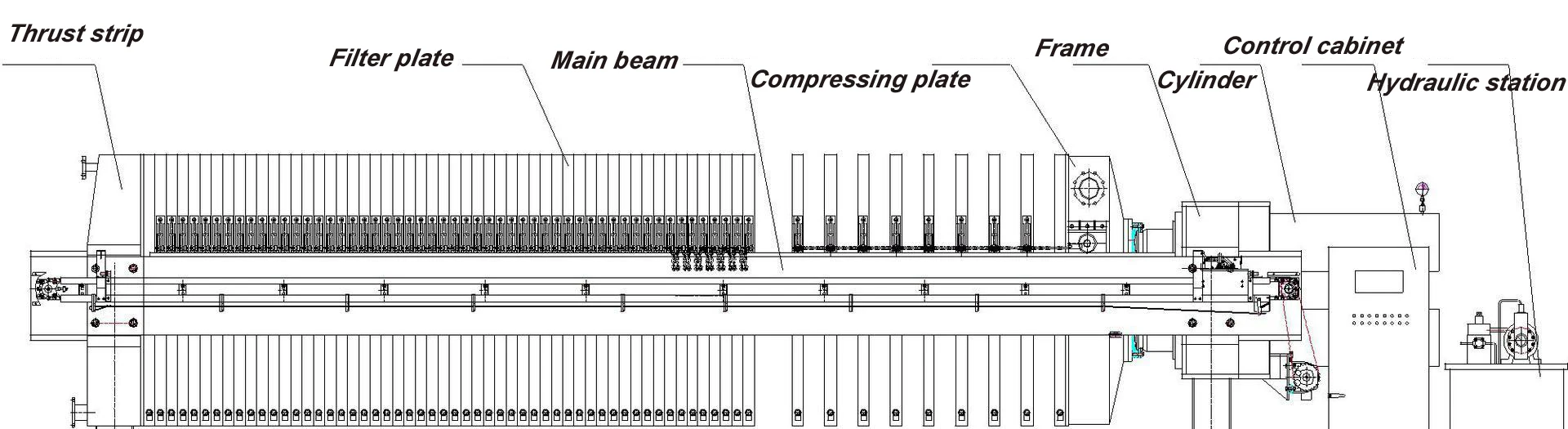

    The structure chart of the plate and frame press filter
    Waste water disposal plate and frame filter press for pharmaceutical factory
    Notice:
    A.The automatic filter can be equipped with filter plate movable device, filter cloth suspension device, filter cloth automatic cleaning device and automatic liquid collecting device according to user's requirement.
    B. When you need to obtain drier filter cake, you can choose a filter press with diaphragm.
    C. When you need to filter high temperature materials in your process, you can choose a filter with cast iron or cast steel filter plate (filter frame).
    D. We can provide special solutions for you if your process requires equipment with higher filtration, washing and pressing pressure .
    E. Please you forgive us if we change some parameter and appearance for improving the performance without notice.
    F.Please contact us in time if you need more detailed information, and we will give you a satisfactory answer.

    Waste water disposal plate and frame filter press for pharmaceutical factory

    Model

    Filter

    area



    Plate
    size

    Cake
    thickness

    Filter chamber
    volume

    Number
    plate

    Filtration pressure

    Motor
    Power

    Weight

    Dimensions
    L×W×H



    Foundation Size





















    L

    B

    D

    H

    BT600/2000

    600


    2000×

    2000



    11901

    85



     15

    54164

    13030×3000×2500

    10610

     1660

     2000

    1050

    BT700/2000

    700





    13838

    99





    58300

    14390×3000×2500

    11920







    BT800/2000

    800





    14945

    107





    62460

    15770×3000×2500

    13240







    BT900/2000

    900





    17713

    127





    66620

    17150×3000×2500

    14560







    BT1000/2000

    1000





    19651

    141





    70780

    18530×3000×2500

    15880





    Note:The parameter in above tables are for reference only. The products can be customized and the relevant parameters should be provided.
